Features
| Usage |
|
| 特点 |
|
Specifications
| 型号 | 最小读值 | 测定范围 | 指示误差（um） | 测定压力 | 外观尺寸（mm） | ||
|---|---|---|---|---|---|---|---|
| mm | mm | 邻接误差 | 全测定范围 | （N）以下 | 表面直径 | 测头长度 | |
| PCN-0 | 0.01 | 0.5 | 5 | 5 | 0.3 | 29 | 17.74 |
| PCN-1A | 0.01 | 0.5 | 5 | 5 | 35 | 17.74 | |
| PCN-1B | 0.01 | 0.8 | 5 | 8 | 35 | 18.63 | |
| PCN-1L | 0.01 | 1.0 | 5 | 10 | 35 | 39 | |
| PCN-2 | 0.002 | 0.28 | 2 | 3 | 35 | 14.18 | |
| PCN-2B | 0.002 | 0.2 | 2 | 3 | 35 | 13 | |
| PCN-S | 0.001 | 0.14 | 2 | 3 | 35 | 66.5 | |
| PCN-7A | 0.01 | 1.5 | 5 | 8 | 35 | 17.44 | |
| PCN-7C | 0.002 | 0.6 | 2 | 6 | 35 | 13 | |
| PCN-5 | 0.01 | 0.5 | 5 | 5 | 35 | 17.44 | |
| PCN-6 | 0.002 | 0.28 | 2 | 3 | 35 | 14.18 | |
Source reference: Super Tooling (Shenzhen) — partner-supplied precision tooling specifications, distributed by Merex Precision Tools with full traceability and pre-sales engineering support.
For OEM bulk pricing, dimensional drawings (PDF/STEP), or sample evaluation units, contact [email protected]. Application engineers respond within one business day.
Request a Quote / Inquiry

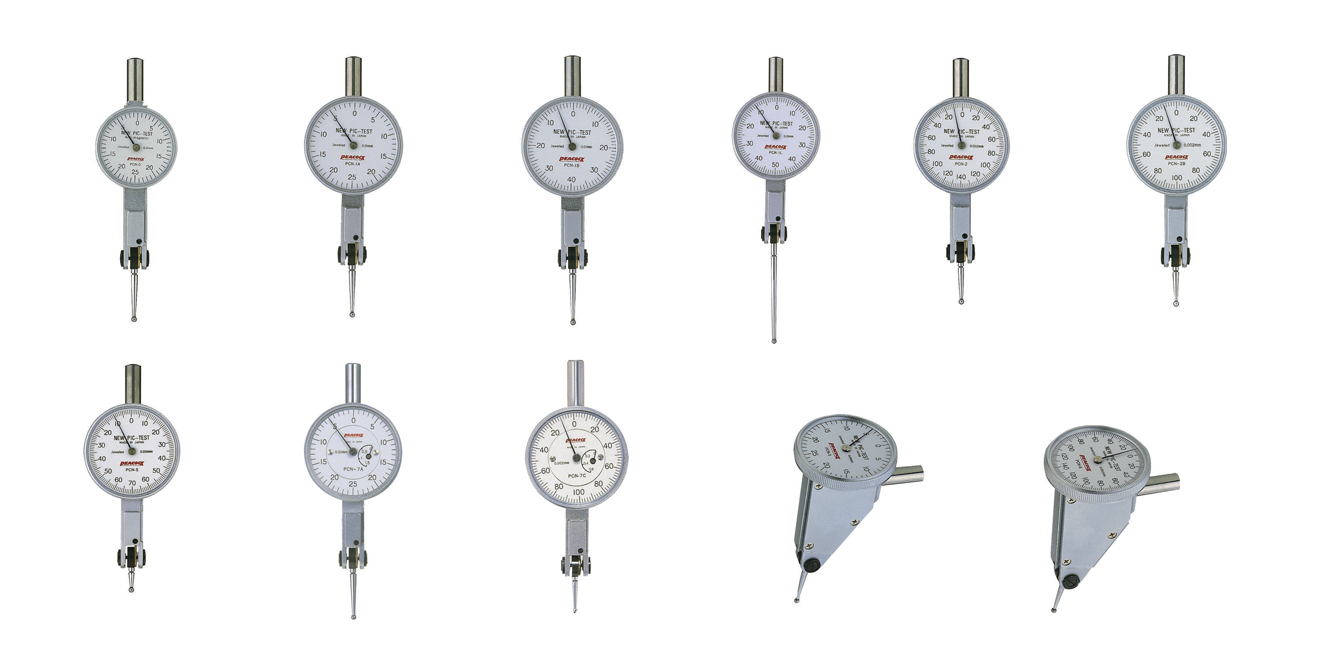

Pricing and availability for PEACOCK PCN-0 Automatic up and down switching lever meter (SKU: PEACOCK-07-PCN-0-01) may change frequently.
Send us your requirements and we will respond within 1 business day.
