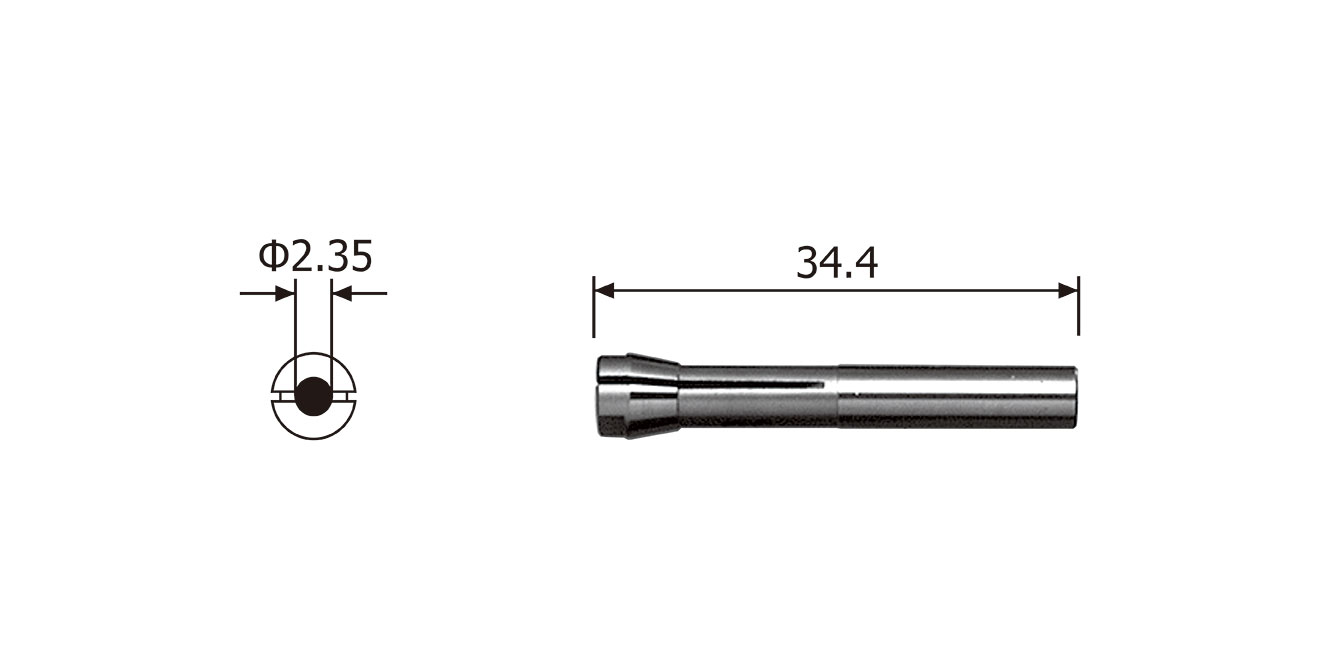

Japan’s Nakanishi CHM-2.35 high-precision collet is suitable for E2000 series AMH-301 high-speed spindle. The clamping diameter is 2.35mm, the runout accuracy is ≤5μm, and the clamping is stable. It is suitable for precision machining, PCB, mold and medical device processing. Shenzhen Gaojingda is the official general agent of Nakanishi in mainland China and Hong Kong, providing original products, model selection, maintenance and authenticity authentication services.
Features
- CHM series collet is suitable for E2000 series AMH-301 spindle
- Collet accuracy within 5μ
- Stable clamping force
- Clamping diameter 2.35mm
Specifications
- Collet
- serial number
- model
- Inner diameter (mm)
- Compatible spindle model
- Collet CHM series
- 90992
- CHM-2.35
- ø2.35
- E2000 series
- AMH-301
- NR-601
- 90930
- CHM-3.0
- ø3.0
- 90993
- CHM-3.175
- ø3.175
- 90916
- CHM-1.6
- ø1.6
- –
- CHM-□□
- ø1.0,、ø2.0
Request a Quote / Inquiry
Pricing and availability for NAKANISHI Nakanishi CHM-2.35 collet｜E2000 AMH-301 spindle chuck｜High-precision collet imported from Japan (SKU: MREX-2718) may change frequently.
Send us your requirements and we will respond within 1 business day.
