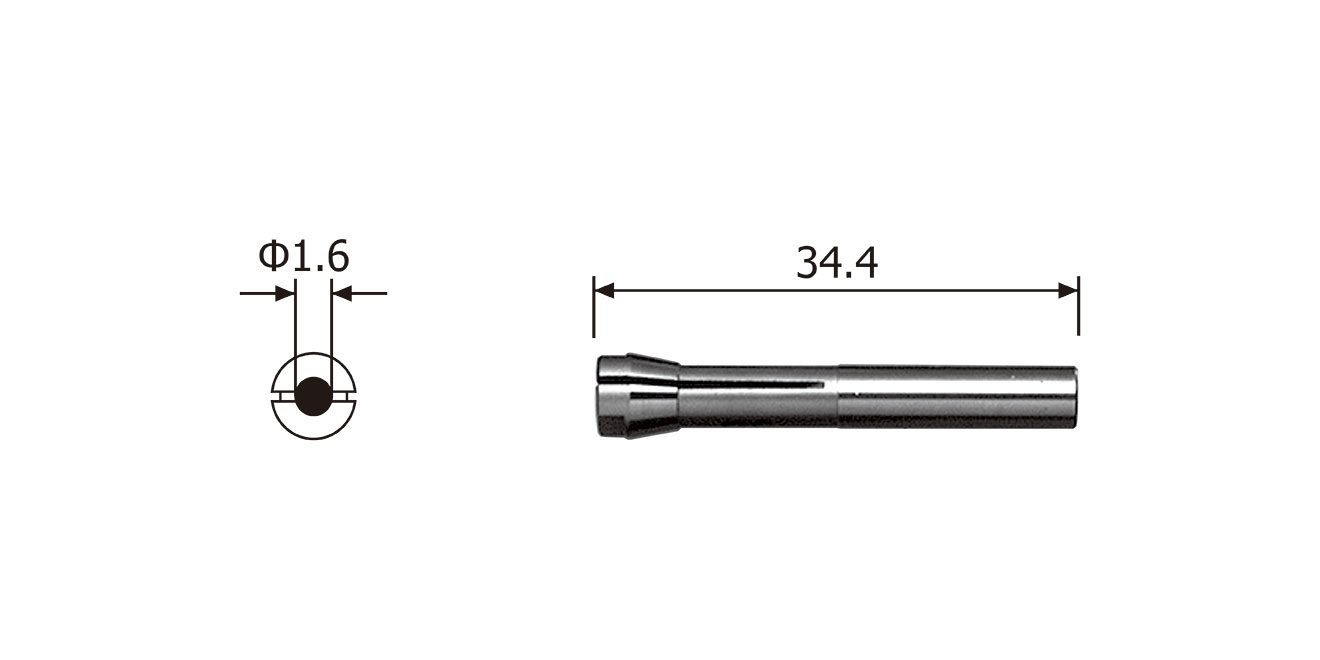

Japan’s Nakanishi CHM-1.6 high-precision collet is suitable for E2000 series AMH-301 high-speed spindle. The clamping diameter is 1.6mm, the runout accuracy is ≤5μm, and the clamping is stable. It is suitable for precision machining, PCB, mold, medical equipment and other industries. Shenzhen Gaojingda is the official general agent of Nakanishi in mainland China and Hong Kong, providing original products, selection support, professional maintenance and authenticity identification services.
Features
- Usage
- CHM series collet is suitable for E2000 series AMH-301 spindle
- Collet accuracy within 5μ
- Stable clamping force
- Clamping diameter 1.6mm
Specifications
- Collet
- serial number
- model
- Inner diameter (mm)
- Compatible spindle model
- Collet CHM series
- 90992
- CHM-2.35
- ø2.35
- E2000 series
- AMH-301
- NR-601
- 90930
- CHM-3.0
- ø3.0
- 90993
- CHM-3.175
- ø3.175
- 90916
- CHM-1.6
- ø1.6
- –
- CHM-□□
- ø1.0,、ø2.0
