ROECKLE 02-4221-4224-01 — Precision Square Level

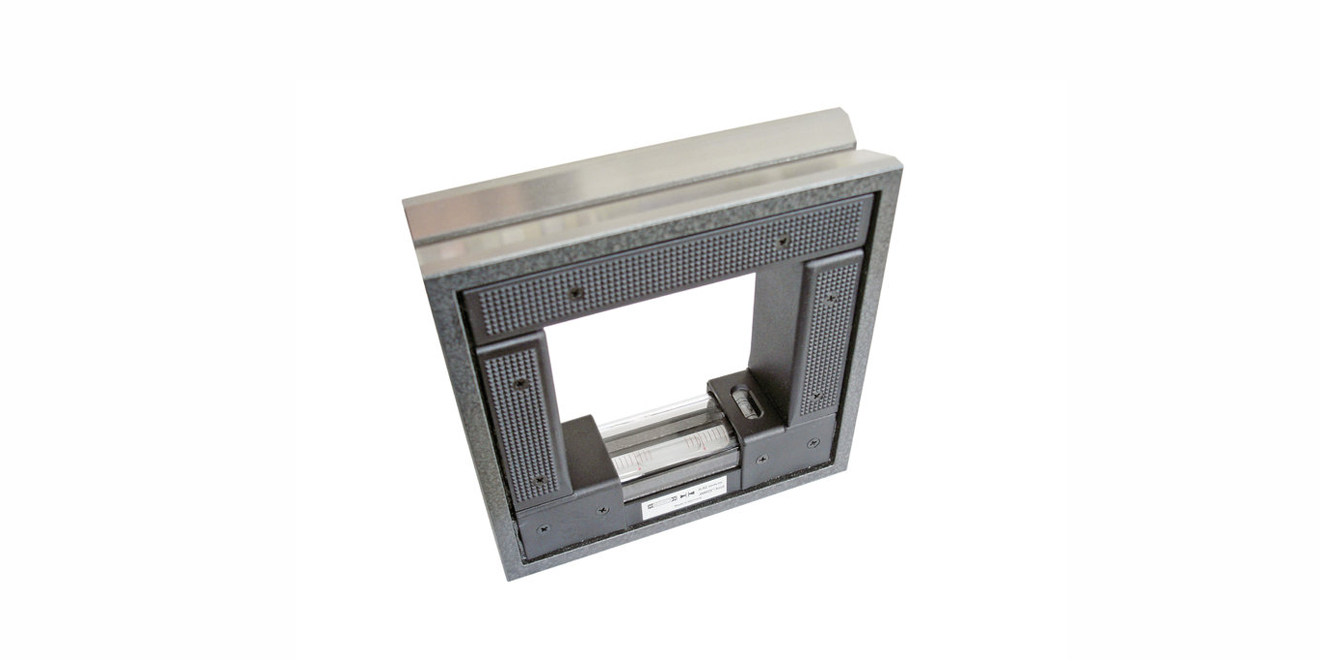

Precision Measuring Tool MT-2527 — Merex Precision Tools (image from precisionsquarelevel)

Written by

in

Features

Usage
  • 用于对齐水平和垂直表面和轴
  • 可检测各类机器和设备导轨的直线度及测定设备安装的水平位置，垂直位置
  • 也能应用于小角度的测量
  • 带有V型槽的工作面还可测量圆柱形工件的安装平行度，以及安装的水平位置和垂直位置
特点
  • 根据DIN877标准设计的高品质水平仪,特殊铸铁基座
  • 结构精密的设计，3个 V面底（150°），1个平面底
  • 接触测量表面经过精细研磨，四周有塑胶保护外壳并具防温变效果
  • 气泡管广阔的视野，让使用者易于判读
  • 原厂塑料盒包装

Specifications

型号 尺寸 最小读值
(mm) (mm/M)
4221/100 100×100 0.10
4221/150 150×150 0.10
4223/150 150×150 0.02
4221/200 200×200 0.10
4223/200 200×200 0.02
4224/200 200×200 0.01
4221/300 300×300 0.10
4223/300 300×300 0.02
4224/300 300×300 0.01

Source reference: Super Tooling (Shenzhen) — partner-supplied precision tooling specifications, distributed by Merex Precision Tools with full traceability and pre-sales engineering support.

For OEM bulk pricing, dimensional drawings (PDF/STEP), or sample evaluation units, contact [email protected]. Application engineers respond within one business day.

Request a Quote / Inquiry

Pricing and availability for ROECKLE 02-4221-4224-01 — Precision Square Level (SKU: ROECKLE-02-4221-4224-01) may change frequently. Send us your requirements and we will respond within 1 business day.
