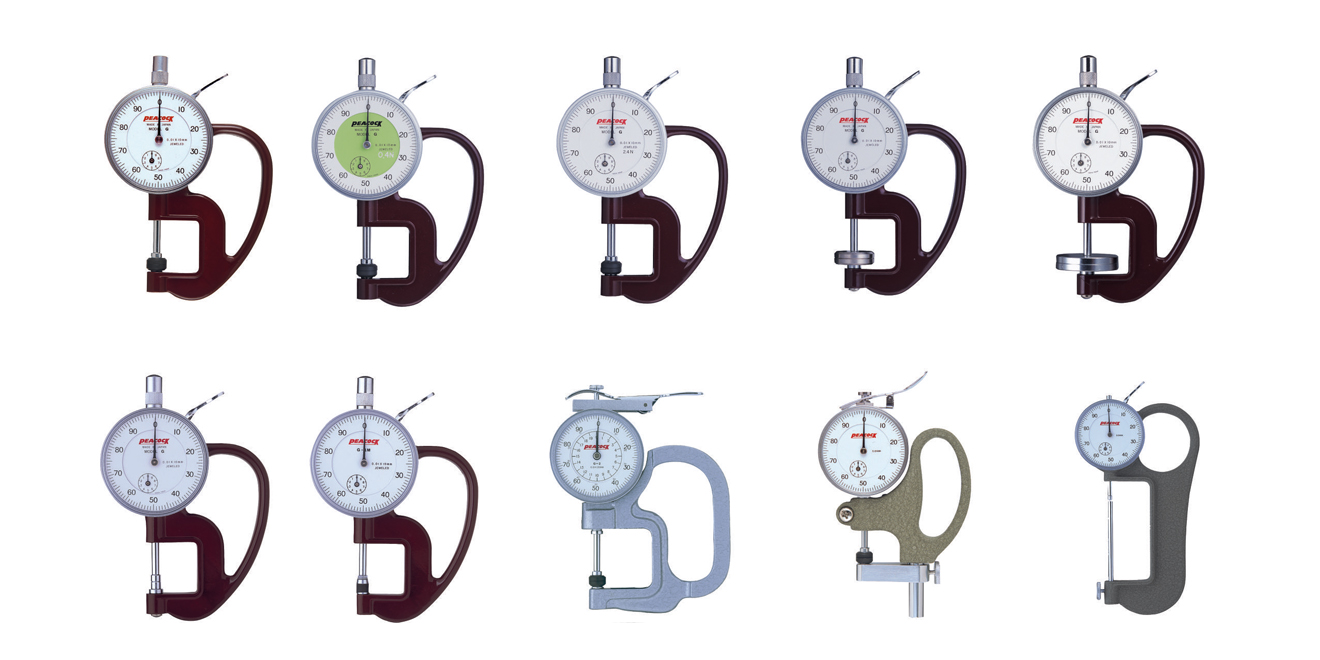

PEACOCK G-2.4N G type dial thickness gauge

Features

• Usage
• Especially suitable for measuring the thickness of small parts, metal, rubber, vinyl, paper, aluminum foil and other sheet materials
• The most distinctive one-piece construction of the gauge frame and groove makes the quality very stable

Specifications

• model
• minimum reading value
• （mm）
• Measuring range
• （mm）
• Determine throat depth
• （mm）
• Accuracy
• （um）
• Measure pressure
• (N) Below
• Anvil style
• （mm）
• Anvil parallelism
• （um）
• G
• 0.01
• 0-10
• 20
• ±20
• 1.8
• Ceramic disc diameter 10
• 5
• G-2.4N
• 0.01
• 0-10
• 20
• ±20
• 2.4
• Ceramic disc diameter 10
• 5
• G-0.4N
• 0.01
• 0-10
• 20
• ±20
• 1.8
• Ceramic disc diameter 10
• 5
• G-MT
• 0.01
• 0-10
• 20
• ±20
• 1.8
• Ceramic disc diameter 10
• 5
• G-1A
• 0.01
• 0-10
• 20
• ±20
• 1.8
• Ceramic disc diameter 5
• 5
• G-1M
• 0.01
• 0-10
• 20
• ±20
• 1.8
• Ceramic disc diameter 6
• 5
• G-2
• 0.01
• 0-20
• 33
• ±22
• 2
• Ceramic disc diameter 10
• 5
• G-20
• 0.01
• 0-10
• 20
• ±20
• 1.8
• Metal disc diameter 20
• 15
• G-30
• 0.01
• 0-10
• 20
• ±20
• 1.8
• Metal disc diameter 30
• 20
