Features
| Usage |
|
| 特点 |
|
Specifications
| 型号 |
最小读值 （mm） |
测定范围 （mm） |
测定喉深 （mm） |
精度 （um） |
测定压力 （N）以下 |
测盘直径 （mm） |
测盘平行度 （um） |
测头直径 （mm） |
|---|---|---|---|---|---|---|---|---|

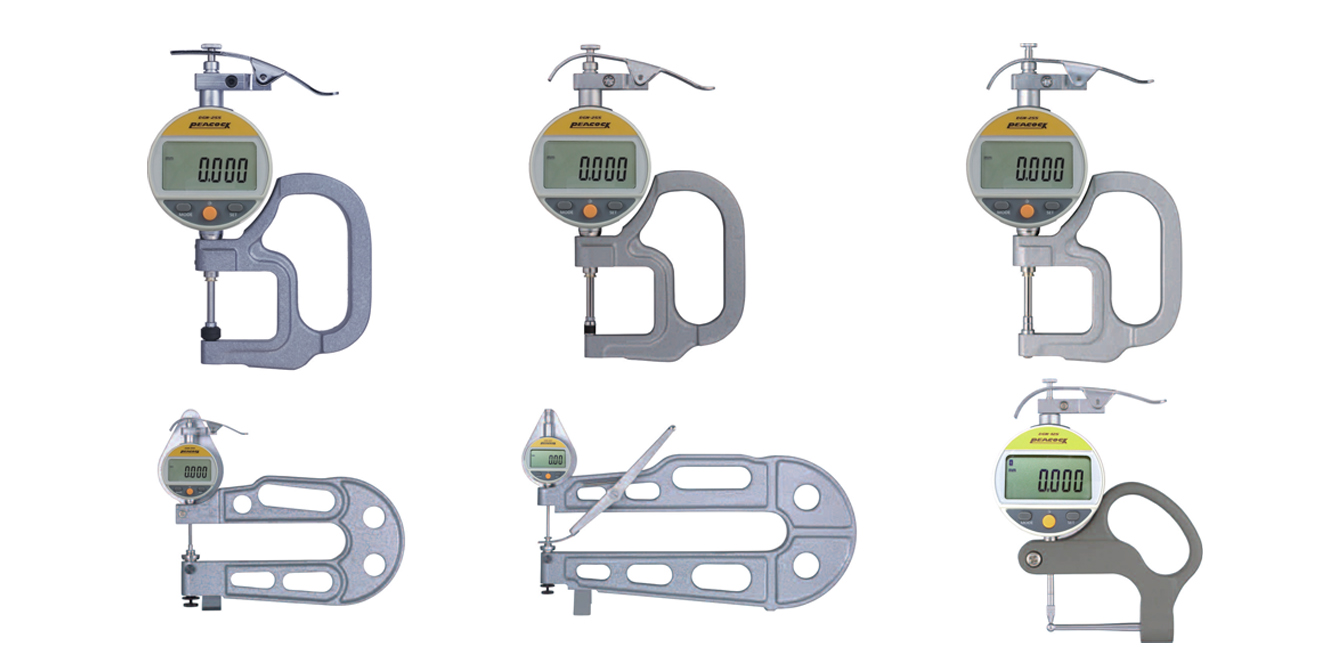

| G2N-255 | 0.001 | 0-20 | 33 | ±8 | 1.2 | 10 | 5 | 10 |
| G2N-255M | 0.001 | 0-20 | 33 | ±8 | 1.2 | 6 | 5 | 2 |
| G2N-257 | 0.01 | 0-20 | 33 | ±20 | 1.2 | 10 | 10 | 10 |
| G2N-257M | 0.01 | 0-20 | 33 | ±20 | 1.2 | 6 | 10 | 6 |
| JAN-255 | 0.001 | 0-20 | 150 | ±10 | 1.2 | 20 | 5 | 上10下20 |
| JAN-257 | 0.001 | 0-20 | 150 | ±20 | 1.2 | 20 | 10 | 上10下20 |
Source reference: Super Tooling (Shenzhen) — partner-supplied precision tooling specifications, distributed by Merex Precision Tools with full traceability and pre-sales engineering support.
For OEM bulk pricing, dimensional drawings (PDF/STEP), or sample evaluation units, contact [email protected]. Application engineers respond within one business day.
Request a Quote / Inquiry
Pricing and availability for PEACOCK CC-124HB Internal gear maximum diameter cylinder gauge (SKU: PEACOCK-05-G2N-255-01) may change frequently.
Send us your requirements and we will respond within 1 business day.
