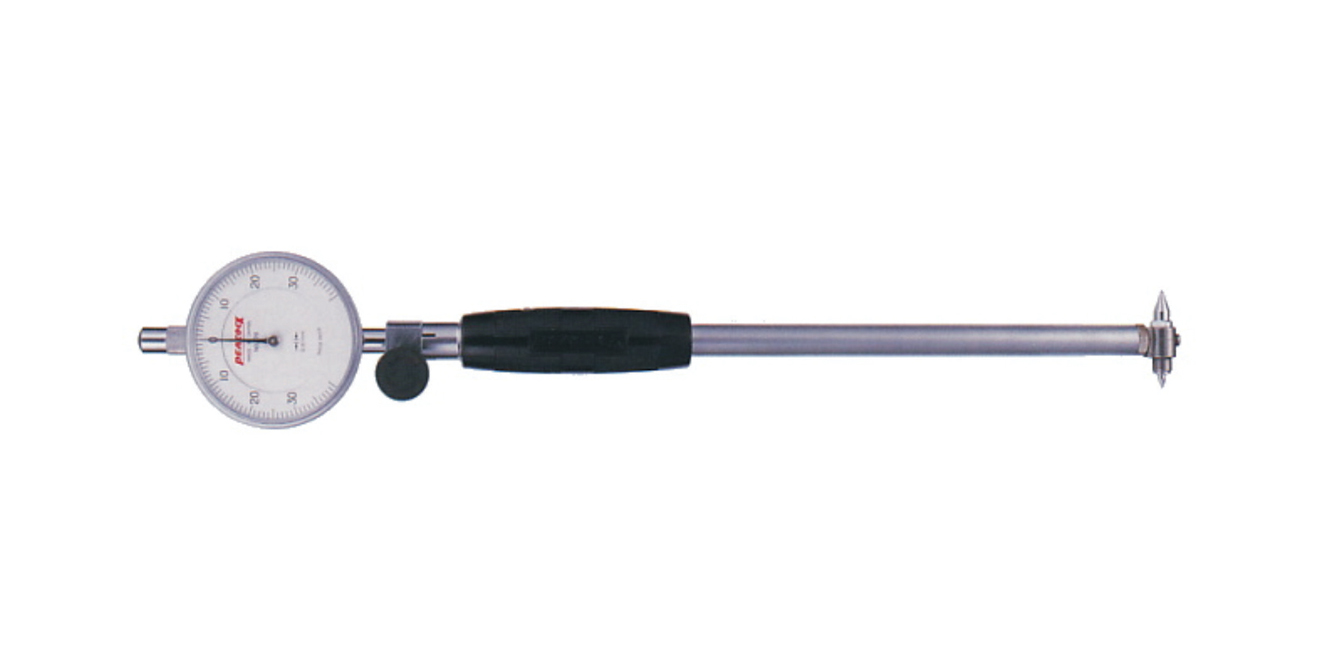

PEACOCK CC-124HB Internal gear maximum diameter cylinder gauge

Features

• Usage
• The maximum diameter cylinder gauge of the internal gear, used for measuring the major diameter of the internal gear spline, can conveniently and accurately measure the major diameter of the gear

Specifications

• model
• Effective diameter of pitch circle
• Measuring rod
• Gasket
• mm
• mm
• mm
• CC-124HB
• 23.5-26.0
• 24
• 0.5,1.0
• CC-126HB
• 25.5-28.0
• 26
• CC-128HB
• 27.5-30.0
• 28
• CC-130HB
• 29.5-32.0
• 30
• CC-132HB
• 31.5-34.0
• 32
• CC-134HB
• 33.5-36.0
• 34
• CC-136HB
• 35.5-38.0
• 36
• CC-138HB
• 37.5-40.0
• 38
• CC-140HB
• 39.5-42.0
• 40
• CC-142HB
• 41.5-44.0
• 42
• CC-144HB
• 43.5-46.0
• 44
• CC-146HB
• 45.5-48.0
• 46
• CC-245HB
• 44.5-50.5
• 45
• 0.5,1.0,2.0,3.0
• CC-250HB
• 49.5-55.5
• 50
• CC-255HB
• 54.5-60.5
• 55
• CC-260HB
• 59.5-65.5
• 60
• CC-265HB
• 64.5-70.5
• 65
• CC-270HB
• 69.5-75.5
• 70
• CC-275HB
• 74.5-80.5
• 75
• CC-280HB
• 79.5-85.5
• 80
