Features
| Usage |
|
| 特点 |
|

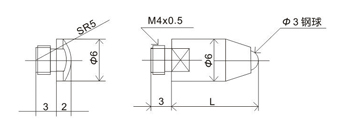

Specifications
| 型号 | 测定范围 | 本体精度（μm） | 基本尺寸（mm） | 标准配件 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | 邻接误差 | 全测定范围 | 重复精度 | 全长A | 可测深B | 测头高C | 测头（支） | 垫片（mm） | 延长杆（mm） | |
| CG-01 | 10-18 | 2 | 5 | 2 | 188.3 | 100 | 3 | 9 | 0.5 | – |
| CG-1 | 18-35 | 246 | 150 | 3 | 9 | 0.5,1 | – | |||
| CG-2 | 35-60 | 246 | 150 | 3 | 6 | 0.5,1,2,3 | – | |||
| CG-3 | 50-100 | 246 | 150 | 3 | 11 | 0.5,1,2,3 | – | |||
| CG-3C | 50-150 | 246 | 150 | 3 | 11 | 0.5,1,2,3 | 50 | |||
| CG-4 | 100-160 | 380.5 | 251.5 | 3 | 7 | 1,2,3,4 | – | |||
| CG-5 | 160-250 | 380.5 | 251.5 | 3 | 10 | 1,2,3,4 | – | |||
| CG-6 | 250-400 | 533 | 400 | 4.5 | 16 | 1,2,3,4 | – | |||
Source reference: Super Tooling (Shenzhen) — partner-supplied precision tooling specifications, distributed by Merex Precision Tools with full traceability and pre-sales engineering support.
For OEM bulk pricing, dimensional drawings (PDF/STEP), or sample evaluation units, contact [email protected]. Application engineers respond within one business day.
Request a Quote / Inquiry
Pricing and availability for PEACOCK CG-01 Special cylinder measuring gauge for blind hole (SKU: PEACOCK-01-CG-1-01) may change frequently.
Send us your requirements and we will respond within 1 business day.
