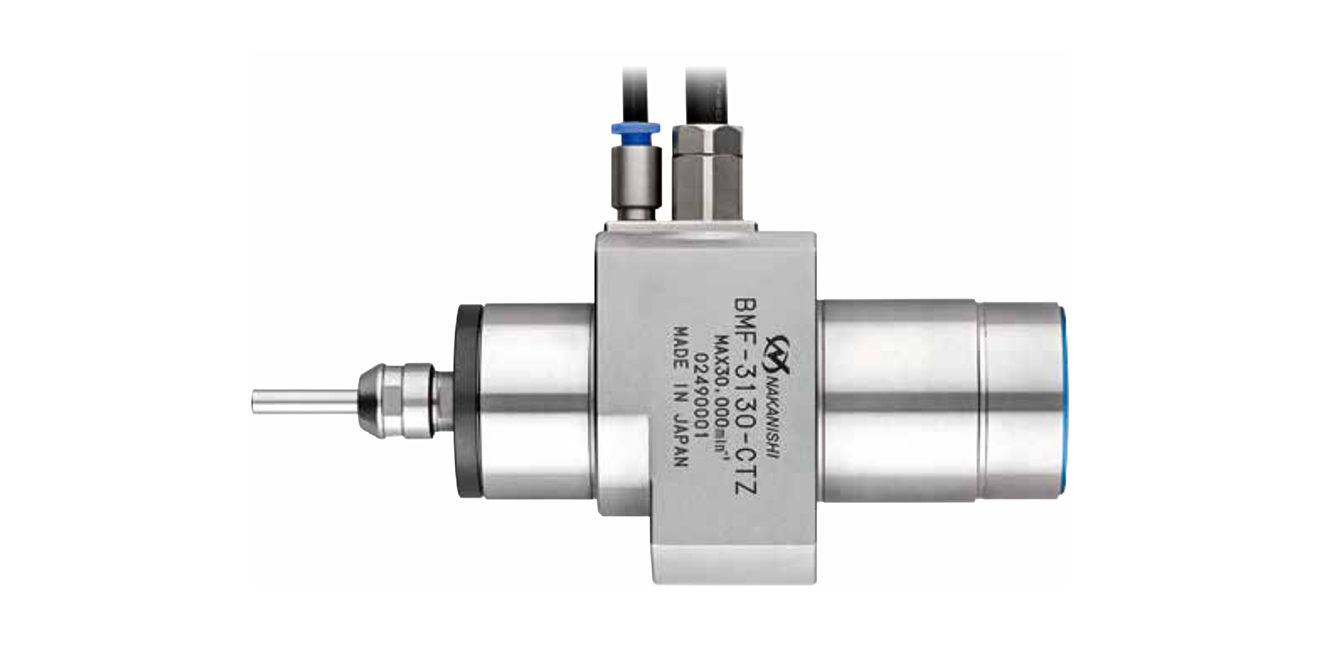

Shenzhen Gaojingda Precision Tools Co., Ltd. specializes in providing Japanese Nakanishi BMF-3130-CTZ flange type high-torque electric spindle, specially designed for STAR/Tsugami and other centrifugal machines. 30,000 rpm/350W power meets micro-tool cutting, and the ultra-short 98.4mm body combines high performance and low vibration to facilitate automated production.

Features

• Can be installed on STAR, CITIZEN, Tsugami, Hanwha, Nomura and other well-known brands of automatic machines.
• Using an independent control system, it can also communicate with machine tools to achieve automated control.
• The spindle can reach a maximum speed of 30,000 rpm, which can meet the cutting speed requirements of various micro tools.
• High-end adaptability to automation and stable machine tool processing performance.
• Ultra-short body design, minimum length is 98.4mm.
• Provides minimal vibration and heat generation to address job site challenges and durability.
• The maximum output power is 350W.

Specifications

• model
• serial number
• outer diameter
• Maximum speed
• Maximum power
• Spindle accuracy
• Collet model
• Minimum bending radius of power cord
• weight
• BMF-3130-CTZ
• 7924
• φ31mm
• 30,000min⁻¹
• 350W
• Within 1μm
• CHA series (φ0.5~φ4.0 mm)
• 60mm
• 659g
• Standard accessories
• Collet nut (CHN-A)/wrench (8×5)·(9×11)/hexagon socket screw (M5×35)·(M5×40): 2 pieces
• Choose and match
• Collet (CHA): Φ0.5-Φ4.0 mm
• Power cord: 3 meters (7931), 5 meters (7932), 7 meters (7933)
