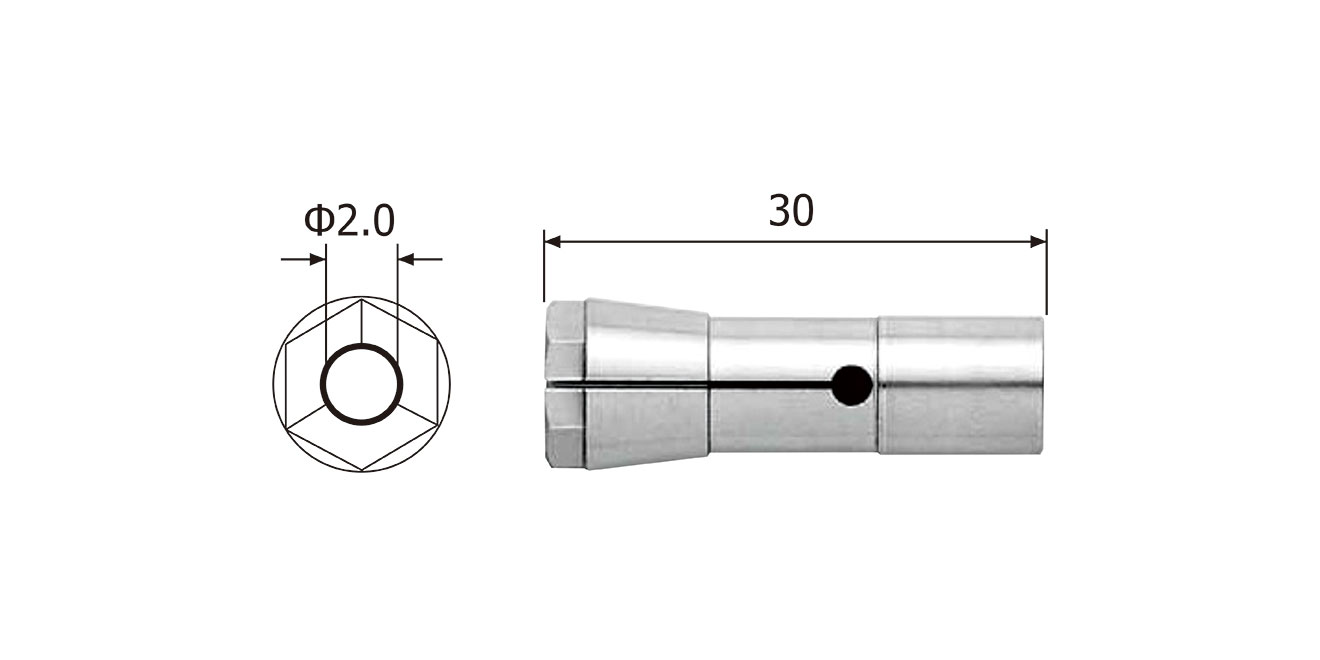

CHR-2.0 precision collet is an original accessory of Nakanishi Japan, suitable for E3000 series NR50-5100ATC high-speed spindle. The clamping diameter is 2.0mm, the clamping accuracy is ≤5μm, and the clamping force is stable, which can effectively improve the tool concentricity and processing accuracy. It is widely used in the fields of precision drilling, micro-machining, engraving and automation equipment to meet high-precision processing needs.
Features
- CHR series collet is suitable for E3000 series NR50-5100ATC spindle
- Collet accuracy within 5μ
- Stable clamping force
- Clamping diameter 2.0mm
Specifications
- Collet
- serial number
- model
- Inner diameter (mm)
- Compatible spindle model
- Collet CHR series
- 91930
- CHR-3.0
- ø3.0
- E3000 series
- NR50-5100ATC
- 91993
- CHR-3.175
- ø3.175
- 91996
- CHR-6.35
- ø6.35
- 91920
- CHR-2.0
- ø2.0
- 91940
- CHR-4.0
- ø4.0
- 91960
- CHR-6.0
- ø6.0
Request a Quote / Inquiry
Pricing and availability for NAKANISHI Nakanishi CHR-2.0 precision collet｜2.0mm high-speed spindle chuck (SKU: MREX-2738) may change frequently.
Send us your requirements and we will respond within 1 business day.
