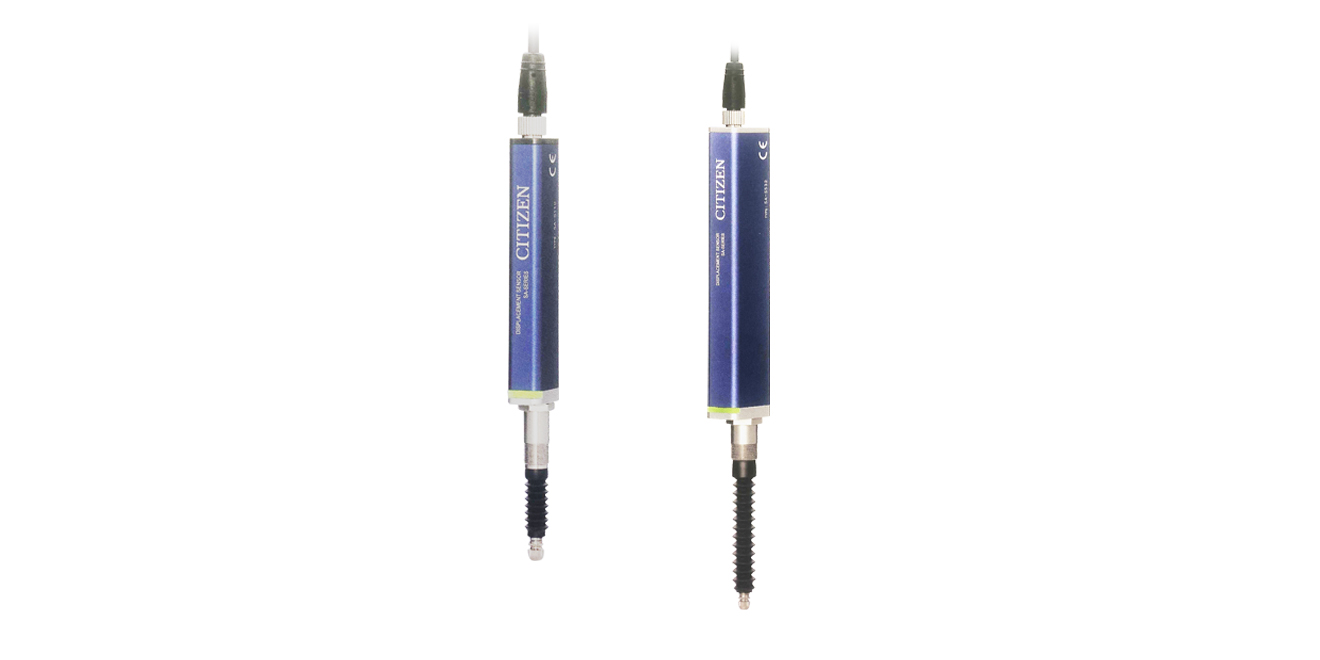

LVDT Displacement Sensor (DTH Series)

LVDT (Linear Variable Differential Transformer) displacement sensor for precision position measurement in production and laboratory environments. Sub-micron resolution enables in-process gauging of critical dimensions.

Specifications: measuring range ±1 mm to ±25 mm (model-dependent), linearity ±0.1% to ±0.5% FS, resolution < 0.1 μm, frequency response 100 Hz to 1 kHz. AC or DC input options, 4-20 mA or 0-10 V output. Typical applications: in-process dimension gauging, valve position feedback, hydraulic cylinder position monitoring, tool offset measurement, structural testing.
